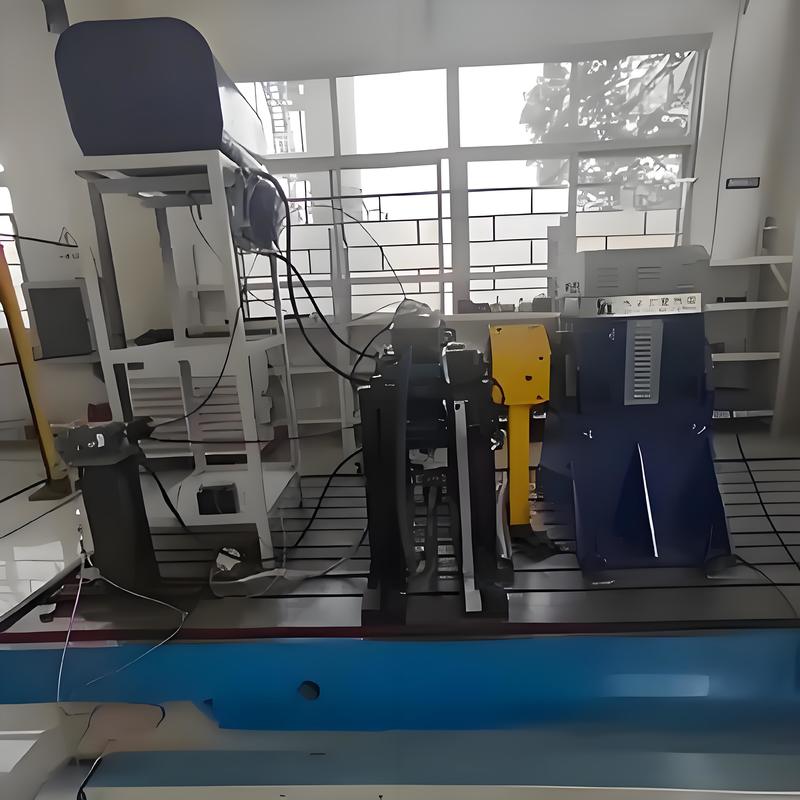

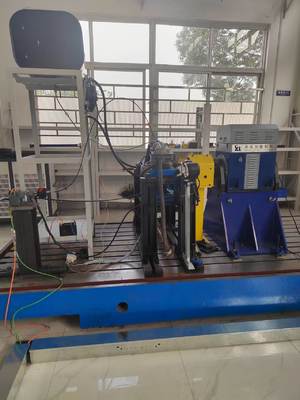

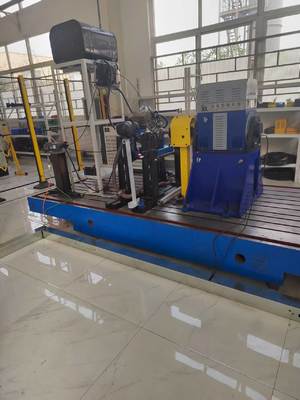

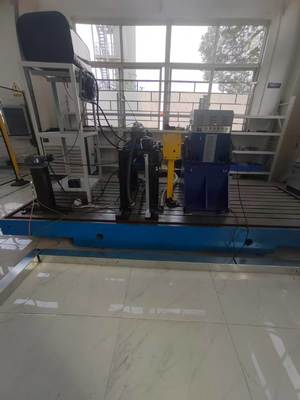

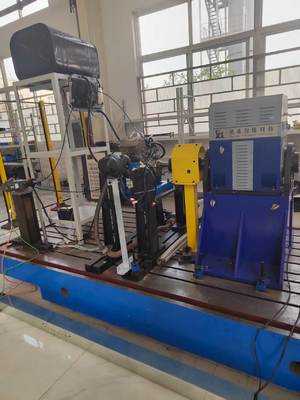

SSCG132-3000/10000 132kW UAV Engine Electric Dynamometer Test Bench

1. SSCG132-3000/10000 132kW UAV Engine Electric Dynamometer Test Bench Component Description

The SSCG132-3000/10000 132kW UAV Engine Electric Dynamometer Test Bench is a comprehensive testing system specifically designed for the research and verification of high-power UAV engines. This system integrates a high-precision electric dynamometer, a modular measurement and control system, and a multi-channel data acquisition unit, enabling comprehensive evaluation of key performance parameters such as torque, speed, power, and fuel consumption of 132kW-class turboshaft/turboprop engines.

2. SSCG132-3000/10000 132kW Electric Dynamometer Technical Parameters

3. SSCG132-3000/10000 132kW UAV Engine Electric Dynamometer Core Advantages

High-precision control: The torque flange and fuel consumption meter have an accuracy of 0.2%FS, and combined with the PID algorithm, speed fluctuation control is achieved (typical value < ±0.1%).
Four-quadrant energy management: Supports dual-mode operation of electric/generator, with high energy feedback efficiency , and adapts to the full-condition testing needs of drone engines.
Modular scalability: The XLE-1000 measurement and control system supports multi-channel data acquisition, and optional components can be flexibly adapted to different test scenarios.
Safety protection: The frequency converter system integrates overload, overvoltage, and overheat protection to ensure stability during high-speed testing.
Low vibration design: The shock absorber is adapted to vibration frequencies of 5-10Hz, and the cast iron plate ensures testing accuracy.


4. SSCG132-3000/10000 132kW UAV Engine Electric DynamometerApplication Areas

Unmanned Aerial Vehicle (UAV) Engine Development: Full-process testing applicable to 132kW-class turboshaft/turboprop engines.
Aerospace propulsion verification: Supports durability testing of difficult-to-machine materials such as high-temperature alloys and titanium alloys.
New energy power testing: Energy feedback efficiency assessment of hybrid Powertrain systems.
Industrial motor calibration: used for high-precision motor torque-speed characteristic calibration.


5. SSCG132-3000/10000 132kW UAV Engine Electric Dynamometer Reference Standards
Electrical safety standards: Complies with IEC 60034-30-1 energy efficiency standards.
Data acquisition standards: in accordance with the ISO 10012 measurement management system.
Environmental adaptability standards: Meets the environmental testing requirements of GB/T 2423 series.

6. UAV Engine Electric Dynamometer Model List

7. Delivery and After-sales Service

Delivery: Standard models ship within 90 days; customized models ship within 90-180 days (including international logistics and customs clearance assistance).
